BU40140 – Subplate with plain surface
Cast iron grade
– 300 / C45
Both face ground, Plates mounting holes as per customer requirement.
Enquiry now

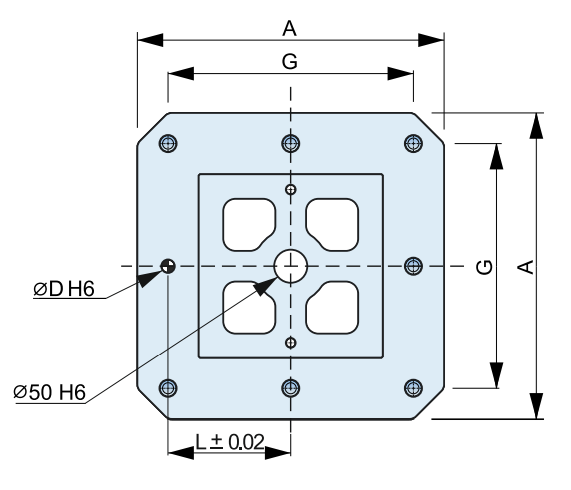

Diagram
Description
Description
Part No.
A
H
E
F
BU40140-400_400
400
50
55
150
BU40140-500_500
500
50
75
200
BU40140-630_630
630
50
100
200
BU40140-800_800
800
50
135
300
