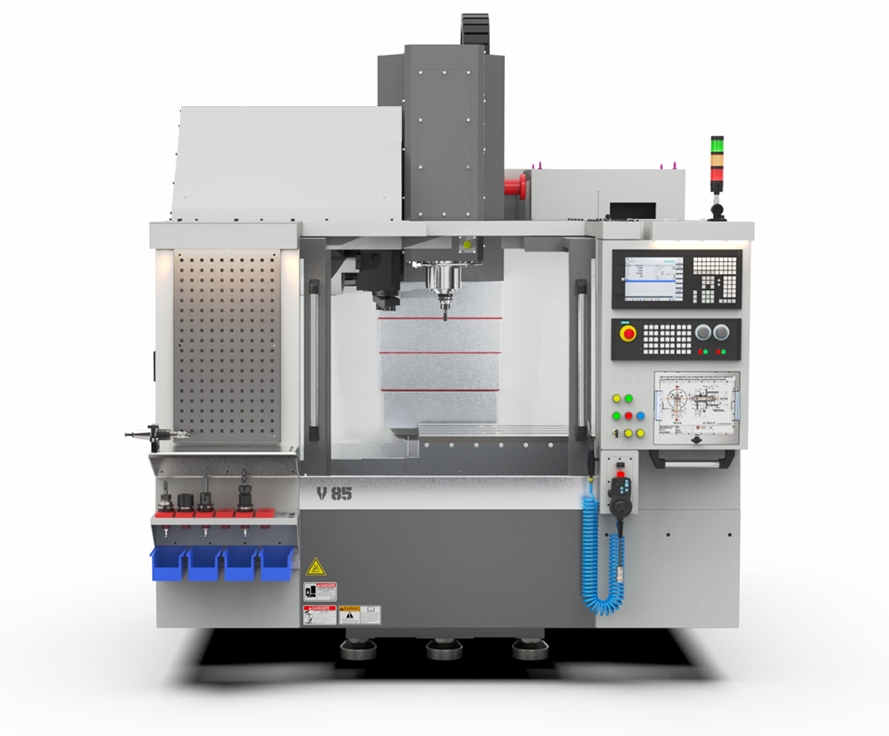

V-series is a high performance vertical machining canter with belt coupled 40 taper spindle by reducing the machine width the footprint is minimized and productivity is optimized by high acceleration\deceleration performance. in addition many standard functions are included for easy operation. V-series is specially designed for high performance general parts machining with high speed BT-40 spindle. high torque spindle with options like coolant through spindle and spindle cooler assures machining stability and precision.

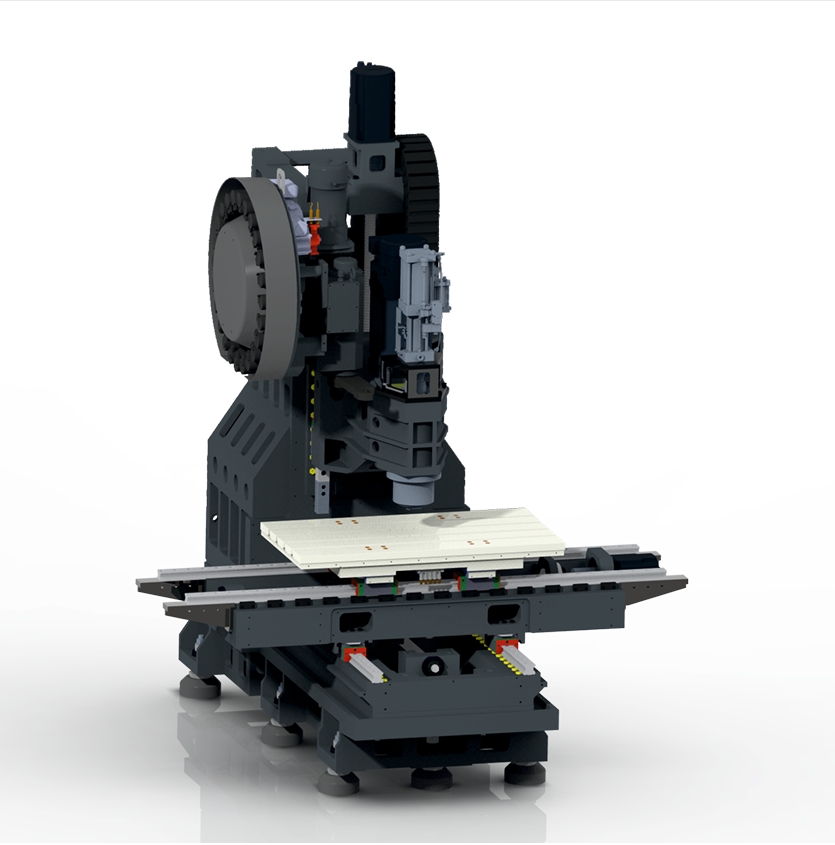

Rugged and highly stable structure assures outstanding machining Performance and Stability. The machine structure is made from graded cast iron with heavy ribbed and thickened walls. casting is stress relieved for greater material stability and guaranteed long term deformation  free performance. A-Shaped Column design gives high rigidity, Optimal vibration damping and better surface quality.
SPINDLE

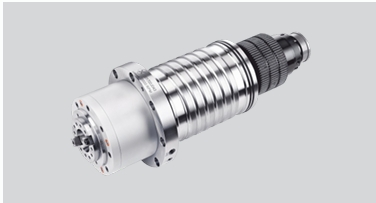

V-series machines are equipped with heavy duty spindles designed for wide range of applications. Equipped with high precision bearing this spindles are capable to withstand heavy cutting forces and maintain stability during operation.

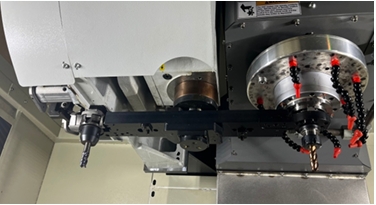

ATC
Highly Efficient and reliable arm type automatic tool changer with 20 tool storage capacity ensures minimum tool change time. 24 tool storage capacity is available as an option.
AXIS SYSTEM

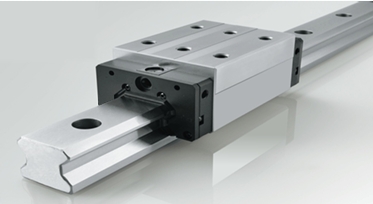

The machine is equipped with roller type guidways in all axis. hardened and ground pre-tensioned ball screw on all axis ensure consistent accuracy and eliminate positioning errors.

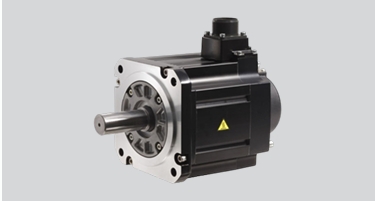

POWERFUL SERVO
All axis are equipped with high accuracy servo motors for applications demanding high speed operation and precise positioning. The inertia of the motor is low and has a high speed of response.
QUALITY ASSURANCE
  • Rigorous tests and inspection
  • Refined and tested design
  • Major components from reputed certified  suppliers in the supply chain

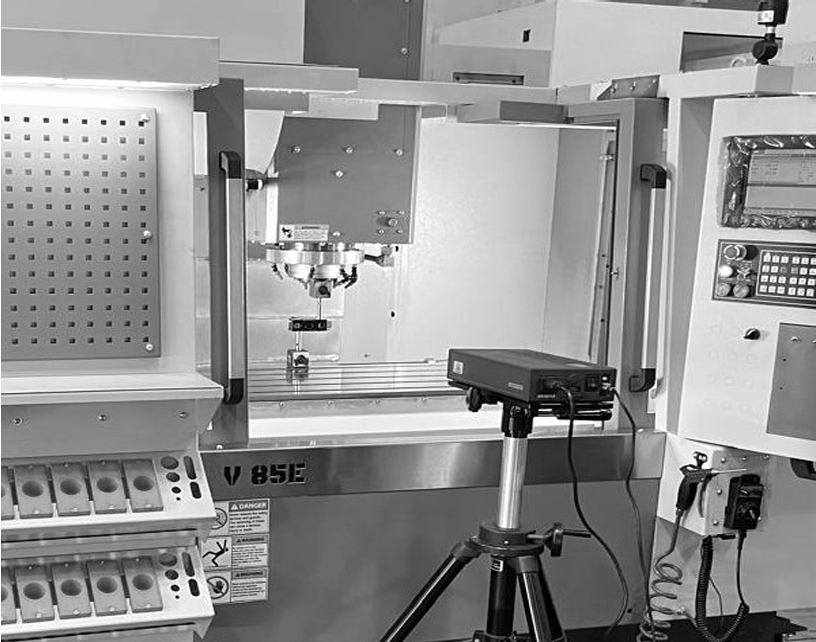

  • Laser measurements as part of standard tests
  • NAS tests on every machie

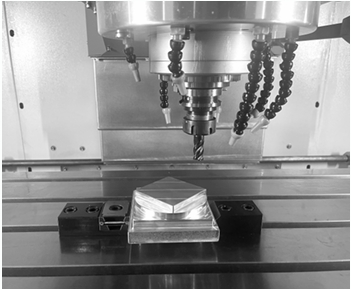

Coolant System

Coolant ring and nozzle arraignment gives maximum coolant flow at the tip of cutting tool. High flow rate pump for better tool life and more productivity

Flush Coolant

High flow rate flush coolant easily removes accumulated chips and protects machine covers.

Raised Column

In case of rotary table or extra height fixtures on the table, the distance between spindle nose and table top can be extended by incorporating distance piece between column and base.

Chip Conveyor

V-series machines can be equipped with chip conveyor for efficient chip removal and uninterrupted production.

Coolant Through Spindle

20 bar internal coolant supply is for improved tool service life and more productivity for the machining of high quality materials and complex parts. internal coolant supply is most important for rapid tool cooling and safe chip removal.

Fixture and Tooled Up Solution

Take advantage of our expertise and add value to your production processes. Add fixture and tools to your machine and start making parts on the day of machine installation.

4th & 5th Axis Solution

For demanding applications and reduce the number of set-ups, rotary 4th axis can be incorporated in the machine. Using rotary production system multiple parts can be machined in single set-up. 5th axis tilting rotary table for multi tasking operation to perform machining in one sequence.

Job Probe & Tool Setter

Workpeice coordinate values can be set automatically using optional spindle probe. prob automatically measures the dimension of the workpeice. tool length and diameter can be set automatically using tool setter, tool setter can be used to monitor and detect broken tools.

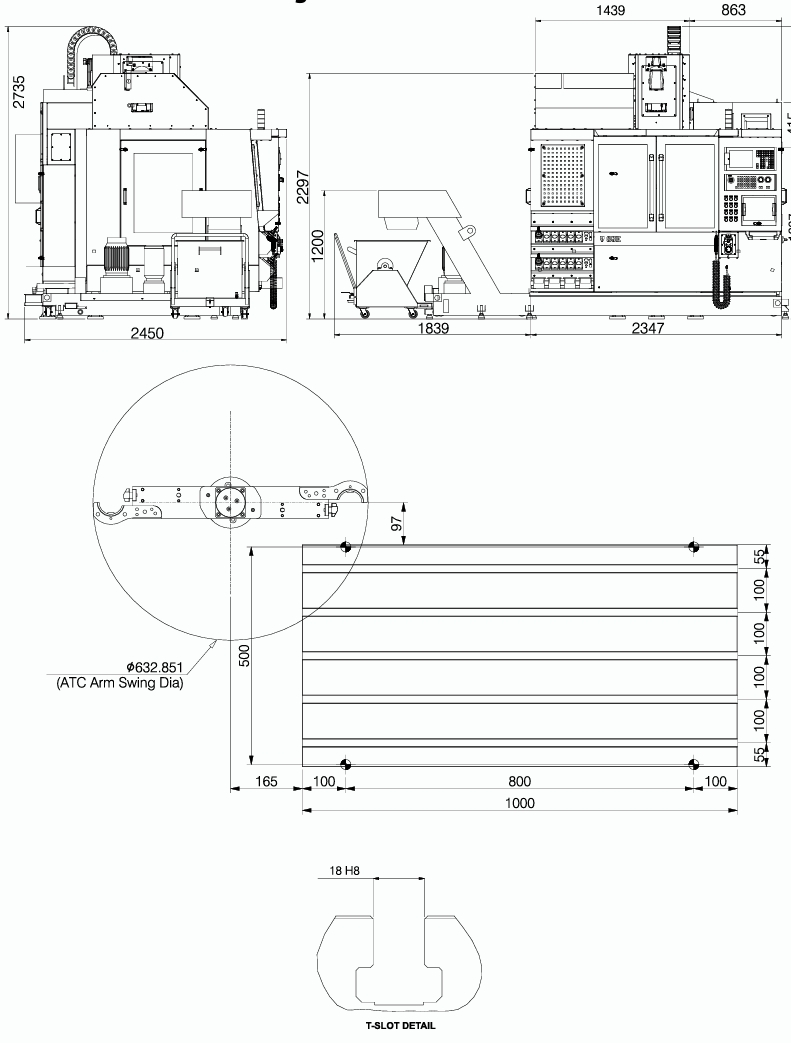

V-85 Machine Layout

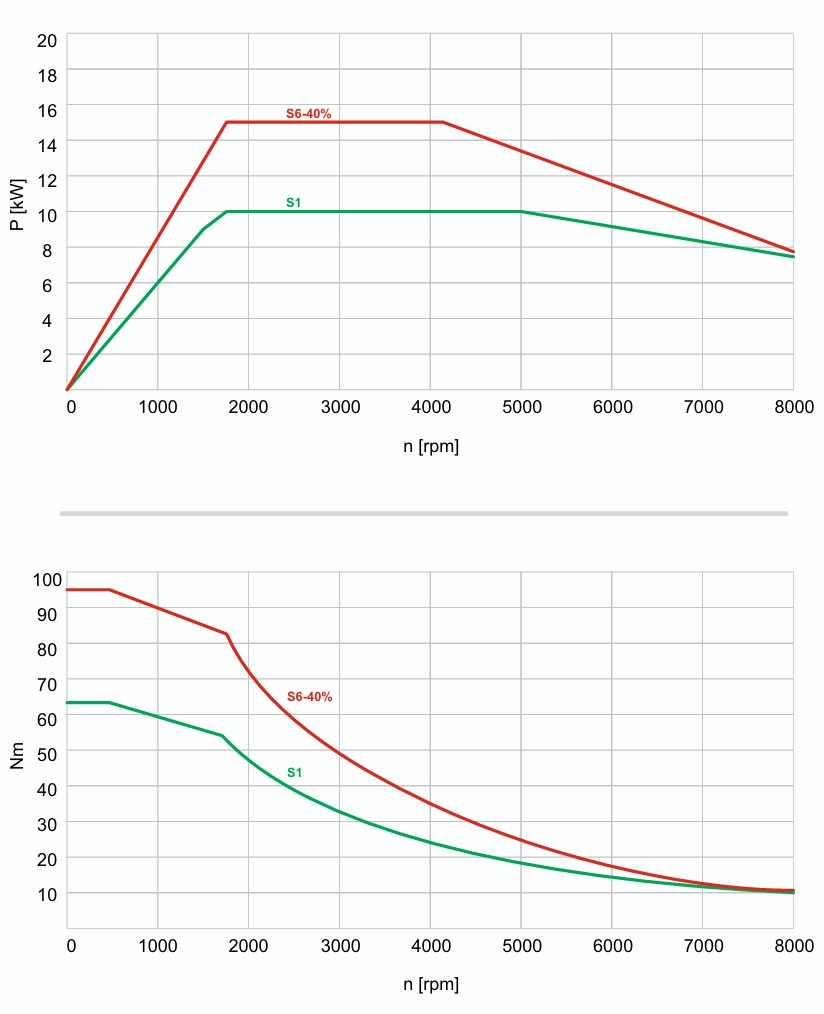

Torque Power Diagram
Standard Accessories
  • AC servo drives
  • AC variable speed spindle motor
  • 24 Tools Arm Type Tool Changer
  • Chip Tray
  • Full splash guard
  • Dust proof electrical cabinet
  • Hardened and ground ball screws
  • Feedback through absolute encoder
  • Automatic tool clamping-unclamping
  • Centralized automatic lubrication system
  • Spindle taper air blow
  • Spindle air purge
  • Air gun, 3 Tier lamp
  • Rigid tapping
  • AC for electrical cabinet
  • Roller type guideways
  • Work light
  • Tool holder tray
  • Mobile MPG
  • USB interface
  • Chip bucket
Optional Accessories
  • 4th and 5th axis rotary table
  • Coolant thru spindle 20 Bar
  • 10000 rpm spindle
  • Chip Conveyor
  • Linear Glass Scale
  • Coolant gun
  • Oil Skimmer
  • Flush Coolant System
  • Tool probe & Job probe
  • Spindle oil cooler
  • Automatic front door
  • Tool Tip Air Nozzle (For Dry Cutting)
  • Hydraulic or Pneumatic fixture line
  • Raised column
Machine Specification
Travels V-85V-85EV-1055V-1370
X-Axismm80080010001300
Y-Axismm500500550700
Z-Axismm500500550700
Spindle nose to table surfacemm100-600100-600100-650100-800
Table
Table sizemm1000×5301000×5301200×5501500×700
T-slotmm5x18x1005x18x1005x18x1005x18x125
Max. loading capacityKg5005008001500
Spindle
Max. spindle speedrpm8000800080008000
Spindle Nose BT-40BT-40BT-40BT-40
Spindle PowerkW9/149/149/149/14
Spindle TorqueNm55-8555-8555-8555-85
Feed
Rapid traverse X/Y/Z axism/min24/24/2432/32/3224/24/2424/24/24
ATC
Tool Change System Twin ArmTwin ArmTwin ArmTwin Arm
Tool shank BT – 40BT – 40BT – 40BT – 40
No of tools 24242424
pull stud MAS 403 P-40T (45)MAS 403 P-40T (45)MAS 403 P-40T (45)MAS 403 P-40T (45)
Max. tool diametermm80808080
Max. tool dia. without adjacent toolmm125125125125
Max. tool lengthmm250250250250
Max. tool weightKg7777
Tool Change (Tool to Tool)sec2.42.42.42.4
Tool Change (Chip to Chip)sec4.84.84.84.8
Accuracy
Positioning Accuracymm0.010.010.010.01
Repeatablitymm0.0050.0050.0050.005
Machine Dimensions
Lengthmm2600260028002850
Widthmm2235223525503400
Heightmm2650265028503100
WeightKg6000410068008750
Others
Power SourceKVA25252525
Air Sourcekg/cm26-86-86-86-8
