| Model | Name | Download |
|---|---|---|

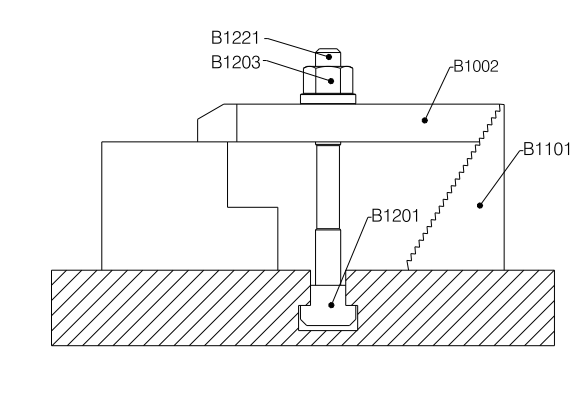

| B1002 | Stepped Strap Clamp |
| Model | Name | Download |
|---|---|---|
| B1002 | Stepped Strap Clamp |

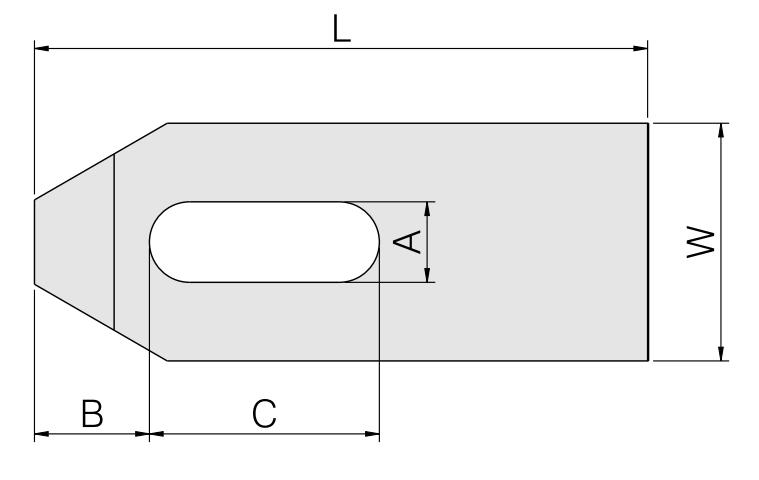

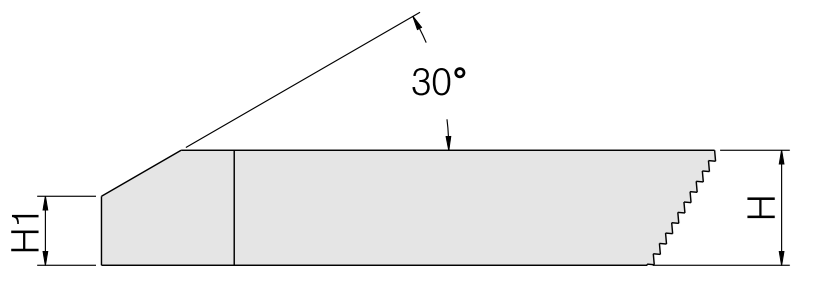

| Part No. | A | L | W | H | H1 | B | C | Weight (Kg) |
|---|---|---|---|---|---|---|---|---|
| B1002-10-60 | 10.5 | 60 | M10 | 30 | 15 | 9 | 15 | 0.15 |
| B1002-10-80 | 10.5 | 80 | M10 | 30 | 15 | 9 | 15 | 0.21 |
| B1002-10-120 | 10.5 | 120 | M10 | 30 | 15 | 9 | 15 | 0.34 |
| B1002-12-65 | 12.5 | 65 | M12 | 30 | 15 | 9 | 15 | 0.16 |
| B1002-12-100 | 12.5 | 100 | M12 | 38 | 18 | 12 | 21 | 0.41 |
| B1002-12-125 | 12.5 | 125 | M12 | 38 | 18 | 12 | 21 | 0.53 |
| B1002-16-75 | 17 | 75 | M16 | 38 | 18 | 12 | 21 | 0.28 |
| B1002-16-125 | 17 | 125 | M16 | 48 | 24 | 15 | 26 | 0.85 |
| B1002-16-160 | 17 | 160 | M16 | 48 | 24 | 15 | 26 | 1.10 |
| B1002-20-160 | 21 | 160 | M20 | 62 | 30 | 18 | 30 | 1.74 |
| B1002-24-200 | 25 | 200 | M24 | 72 | 38 | 21 | 35 | 3.2 |
